    Wire Backed Woven Asbestos Brake Lining For High Degree Of Friction Field

    Ask Lasest Price
    Brand Name : KBN
    Model Number : KBN-43
    Certification : ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 900 tons per month
    Delivery Time : 12 work days
    • Product Details
    • Company Profile

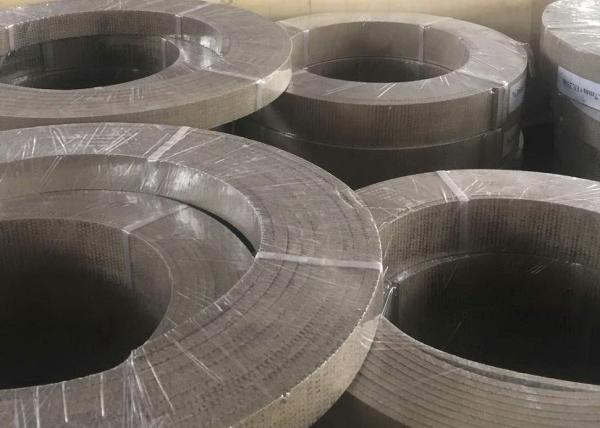

    Wire Backed Woven Asbestos Brake Lining For High Degree Of Friction Field

    Wire Backed Woven Asbestos Brake Lining Roll Brass Wire Reinforced Roll Lining

    Application Field:


    Brake Lining Rolls are widely used in decelerating and braking of engineer machines, industry machines and mining machines, such as Winch, Windlass, Tractor, Sugar Mill, Crane, Oil Well Drilling, Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, etc.

    Width: ≤600mm
    Thickness: 4-35mm
    Length: 3m, 5m, 8m, 10m, 15m, 20m, etc

    Product Characteristics:


    1. Good flexibility,

    2. Excellent oil resistance and water resistance,

    3. High tenacity, shock resisting, heat resisting,

    4. Good duality and anastomosis, agile brake.

    Brake Lining Roll is made of woven material with brass wire, resin glass fiber, and viscose fiber, is applicable to industrial machinery that requires a high degree of friction, can be used in oil wells, dredges, sugar mills, winch, cranes, construction machinery, power generators, voltage controllers, cutters of paper, stamping machines, glass melting machinery, among many other applications.

    Quality Performance:



    Interface Temperature



    Friction coefficient


    Wear rate(CM3/NM)


    100°C


    0.40—0.65


    ≤0.7×10-7


    150°C


    0.35—0.65


    ≤1.1×10-7


    200°C


    0.30—0.60


    ≤1.3×10-7

    Materials:
    Brass wire, glass fiber, viscose fiber, resin and friction materials, etc.
    Its coefficient of friction has a high capacity to absorb loads by impact and excellent resistance to mechanical stress.

    Available Services:


    1. Free Samples
    Free samples within 1-10 KGs are availble, but the delivery fee should be paid by your side.
    2. Certificates
    We can supply Quality Certificates, Test Report, Certificate of Original (Form A, Form E, etc.), SGS test, etc.
    3. Strict Quality Control
    Our strictly Quality Control department will inspect each batch of goods before loading, only after the goods qualified, it can be allowed to out of the factory.
    4. Professional Document Service
    After shipped, our professional documents department will serve you all the documents for you timely.

    KEBONA has more than 10 years experience in manufacturing Brake Lining Rolls, which can bring mutual benefit and profits to you and us.

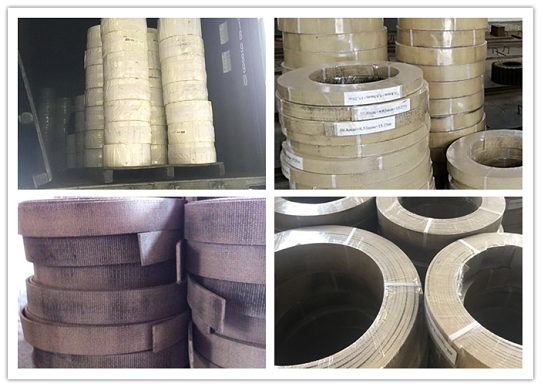

    Delivering and Packaging:
